125mm Nylon Castor - Swivel Plate - 200kg - Stainless Steel – Wheelco
125mm Nylon Castor - Swivel Plate - 200kg - Stainless Steel
Stainless Steel Castors | All Castors

SKU: MSN125/SP

125mm Nylon Castor - Swivel Plate - 200kg - Stainless Steel

$68.52
$68.52
Sale Sold out
  Excl.GST
/
Max:
200kg
Download CAD Files
{{ wishlistButtonText }}

Use 'Add to Quote' to build a list for a personalised enquiry.

This is a pre order item. We will ship it when it comes in stock.

Description

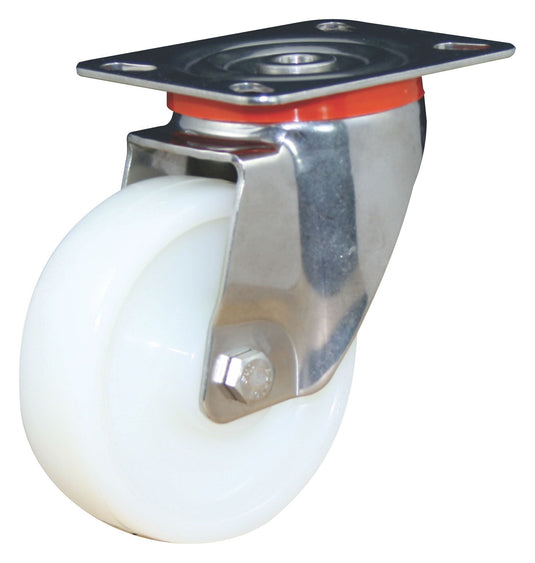

The MSN125/SP castor frame is a swivel plate type, with a double head race bearing, all constructed from the highest quality AISI 304 Stainless Steel, fully certified for uses in hygienic and food environments.

The 125mm diameter wheel is a solid white nylon 6 material, with a plain bore centre, stainless steel axle bush fitted.

With a 200kg capacity, this castor is ideal for medium duty applications such as a range of stainless trolleys, food production areas, meat/fish processing & where hygiene is paramount.

These castors can function competently between temperatures of -40°C up to +90°C

Versatile plate mount with slotted holes, meaning the standard mount size of 80mm x 60mm is achieved plus other variants, for in depth plate measurement click here -

Specifications

Code: MSN125/SP
Load per Castor: 200kg
Wheel Diameter: 125mm
Wheel Width: 40mm
Bearing Type: Plain Bore
Wheel Material: Nylon
Overall Height : 155mm
Swivel Radius: 110mm
Plate Size: 100mm x 85mm
Bolt Hole Spacing: 80mm x 60mm
Bolt Hole Size: 9mm
