Description

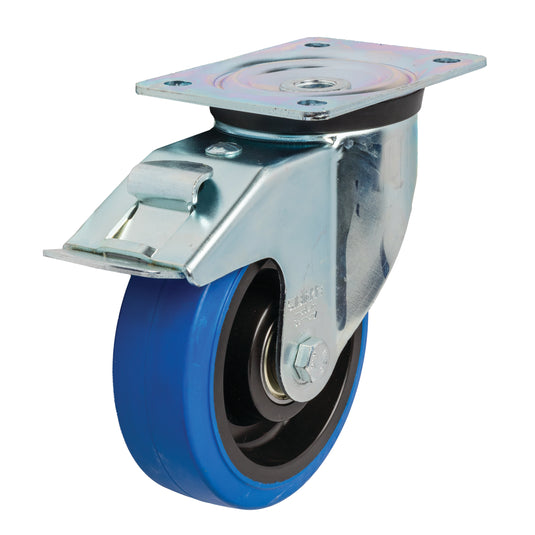

MHB150/P-TB Castor has a heavy duty pressed steel frame - zinc plated, twin head race ball bearings with a swivel head seal and a plate mount. Smooth swivelling action, minimum swivel head play and smooth rolling characteristic leading to increased service life due to the special dynamic Blickle riveting process.
The brake is a total brake, meaning it locks both the wheel & the swivel function at the same time. The large steel brake pedal allows for easy on/off operation.
The 150mm blue elastic rubber wheel is a non-marking solid rubber on a impact resistant Nylon 6 rim with a double internal ball bearing. The elastic rubber is vulcanised to the wheel centre resulting in an inseparable connection. This wheel also has a very high resistance to chemicals, except oils. These elastic rubber wheels ensure great floor preservation, low noise operation & are smooth rolling.
These have a weight capacity of 300kg each making them ideal for warehouse trolleys, transport boxes/equipment, industrial equipment and applications that have to go over bumpy/uneven floors.
These castors are ideal for applications that have to go outdoors & then indoors, they wont bring in stones/chips/debris and deposit it inside, the resilient rubber repels these pieces.
These castors can function competently between temperatures of -20°C up to +80°C
Specifications
| Code: |
MHB150/P-TB |
| Load per Castor: |
300kg |
| Wheel Diameter: |
150mm |
| Wheel Width: |
46mm |
| Bearing Type: |
Ball Bearing |
| Wheel Material: |
Elastic Rubber |
| Overall Height : |
190mm |
| Swivel Radius: |
167mm |
| Plate Size: |
140mm x 110mm |
| Bolt Hole Spacing: |
105mm x 80mm |
| Bolt Hole Size: |
11mm |
