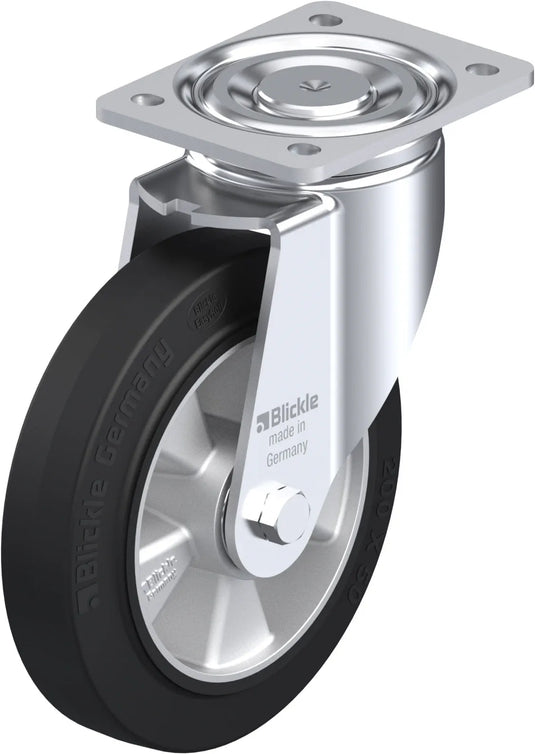

200mm Elastic Rubber - Swivel Plate - 500kg capacity

Description

MXAB200/P Castor is constructed from heavy duty pressed steel frame - zinc plated, twin head race ball bearings with a swivel head and a plate mount. Smooth swivelling action, minimum swivel head play and smooth rolling characteristic leading to increased service life due to the special dynamic Blickle riveting process.

Particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats in the castor swivel headrace.

The 200mm Black elastic rubber wheel is a solid rubber tread on a die-cast aluminium rim with a double internal ball bearing. The elastic rubber is vulcanised to the wheel centre resulting in an inseparable connection. This wheel also has a very high resistance to chemicals, except oils. These elastic rubber wheels ensure great floor & load preservation, low noise operation & are smooth rolling.

These have a weight capacity of 500kg each making them ideal for warehouse trolleys, transport boxes/equipment, industrial equipment and applications that have to go over bumpy/uneven terrain.

These castors are ideal for applications that have to go outdoors & then indoors, they wont bring in stones/chips/debris and deposit it inside, the resilient rubber repels these pieces.

These castors can function competently between temperatures of -20°C up to +80°C

Specifications
